RIG®

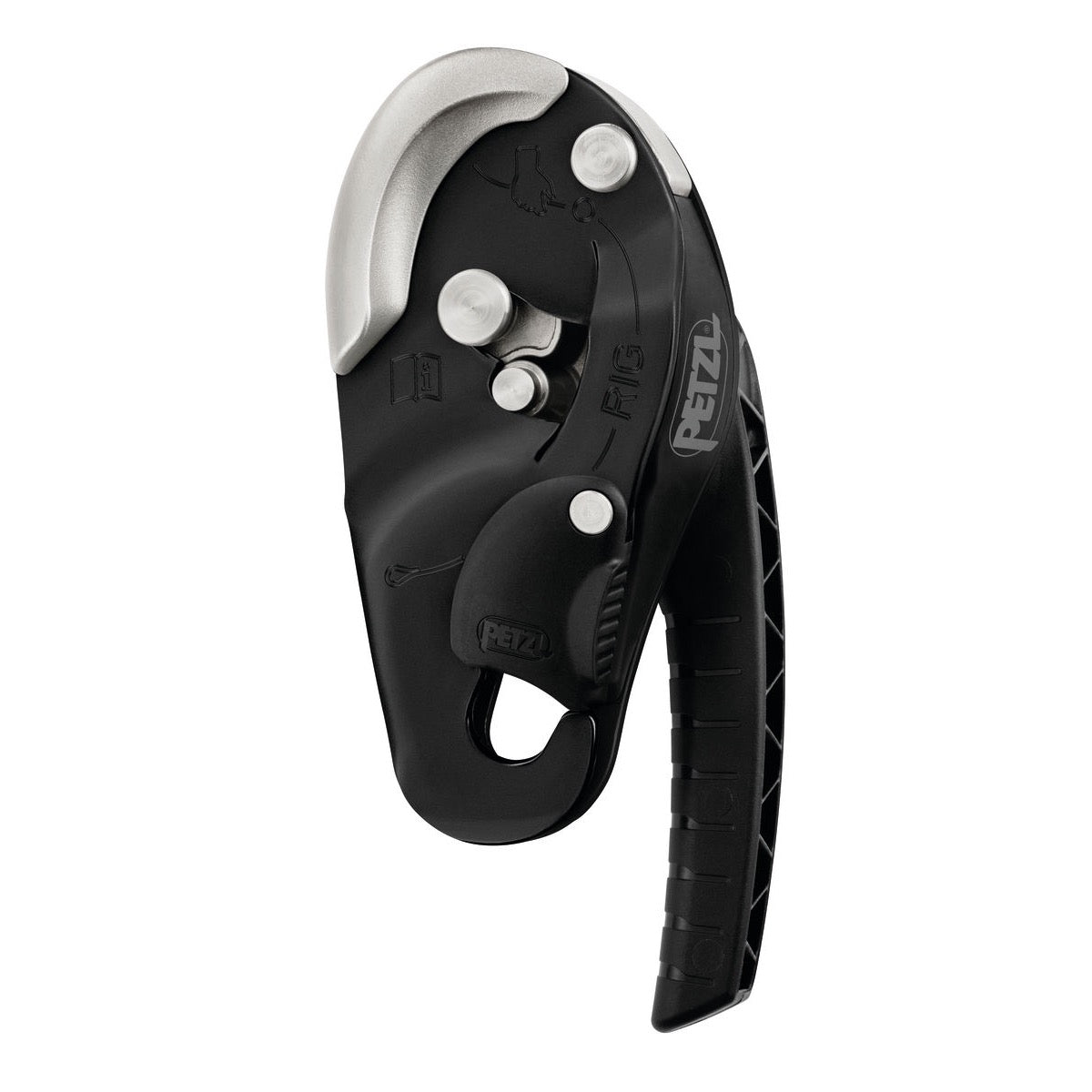

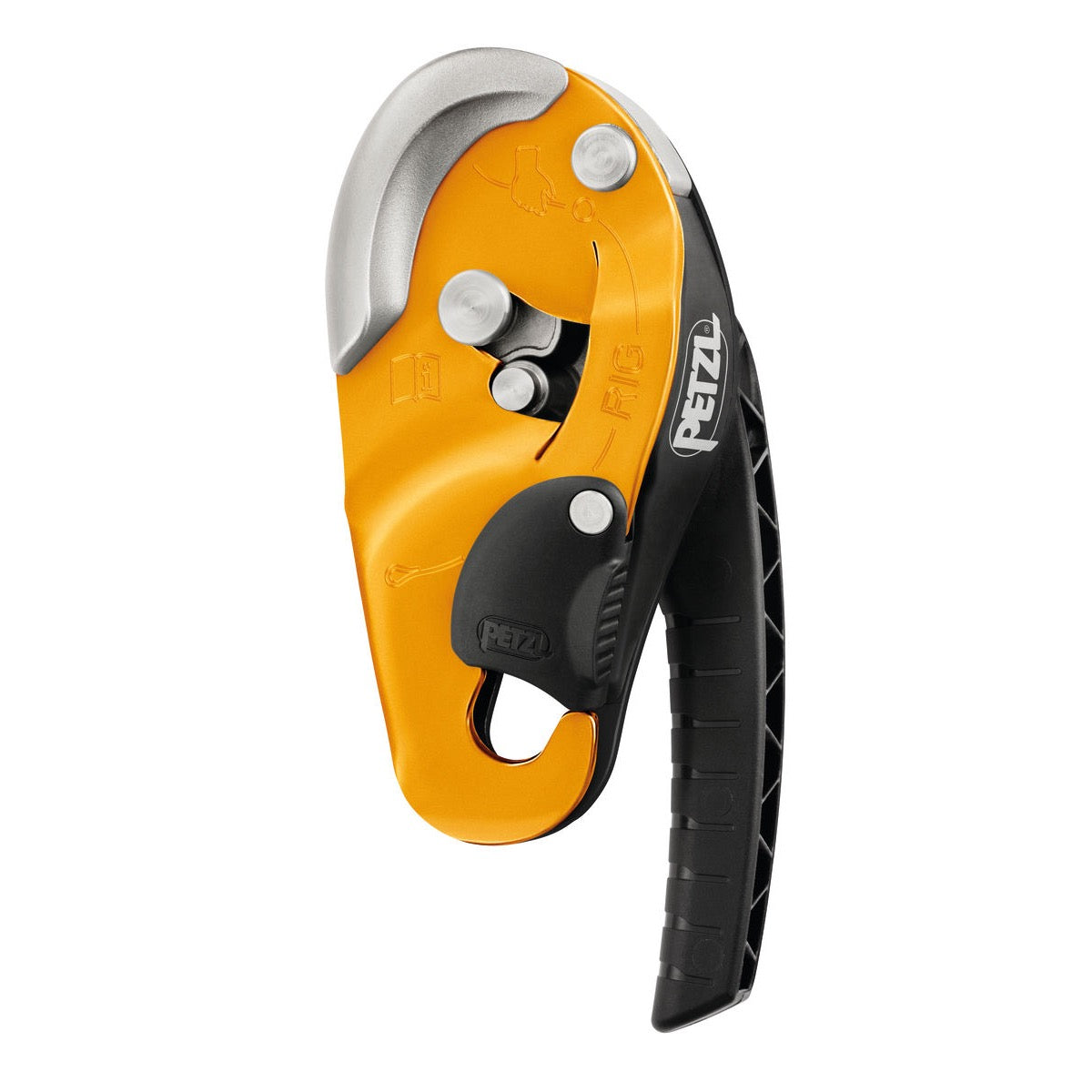

Compact self-braking descender for rope access, designed for experienced users RIG is a compact self-braking descender for rope access, designed for experienced users. It has an ergonomic handle that allows comfortable descent control. The AUTO-LOCK system allows users to easily position themselves at the work station without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the harness.

Advanced Rope Access Device for Experienced Workers

Our rope access device is tailored for experienced rope access professionals, offering easy use, versatility, and enhanced safety for demanding work environments.

Easy to Use Features

• Safety Gate on Moving Side Plate: Facilitates easy rope installation while the device remains attached to the harness, ideal for passing intermediate anchors seamlessly.
• Rope Guide and Markings: Ensure straightforward rope installation, reducing setup time and minimizing errors.
• Ergonomic Handle: Provides convenient descent control with two descent modes: using the side plate or the V-shaped friction channel. The handle also features an AUTO-LOCK system for positioning at workstations without manual adjustment.
• Automatic Lock and Snag Prevention: The rope is automatically locked when the handle is released, with an automatic return system to limit snag risks. The handle switches to storage position when the rope is removed, further reducing snagging risks when carried on the harness.

Versatility

• Locking and Rope Take-Up: Once locked, the rope can be taken up without handle manipulation, facilitating easy short ascents or adjustments.
• Cam Manipulation: Allows for easy slack take-up or to belay a lead using standard climbing techniques, enhancing the device’s adaptability for various climbing scenarios.

Durability and Specifications

• Stainless Steel Wear Plate: Enhances the device’s durability by reinforcing the rope friction zone, ideal for frequent use in rugged conditions.
• Heavy Load Capacity: Capable of safely descending heavy loads up to 200 kg, suitable for a wide range of operational demands.
• Rope Compatibility: Accommodates ropes from 10 to 11.5 mm in diameter, providing flexibility in rope selection.
• Color Options: Available in yellow and black, offering choices to match personal or team gear preferences.

Technical Information

• Material(s): aluminum, steel, nylon
• Weight: 400 g
• Maximum working load: 200 kg (more information in the Instructions for Use and in the technical advice at www.petzl.com)
• Certification(s): EN 341 type 2 class A, CE EN 12841 type C, CE EN 15151-1, ANSI Z459.1, ANSI Z359.9, NFPA 1983 Technical Use, EAC, GB/T 38230 II A, XF 494:FZL-X-Q10/11.5 - EN 341 type 2 class A when used with PARALLEL 10.5 mm or AXIS 11 mm rope - EN 12841 type C when used with a 10 to 11.5 mm EN 1891 A rope - EN 15151-1 when used with a 9 to 11 mm rope - NFPA 1983 Technical Use when used with a 10 to 11.5 mm rope

Certifications

• EN 341 type 2 class A
• CE EN 12841 type C
• CE EN 15151-1
• ANSI Z459.1
• ANSI Z359.9
• NFPA 1983 Technical Use
• EAC
• GB/T 38230 II A
• XF 494:FZL-X-Q10/11.5 - EN 341 type 2 class A when used with PARALLEL 10.5 mm or AXIS 11 mm rope - EN 12841 type C when used with a 10 to 11.5 mm EN 1891 A rope - EN 15151-1 when used with a 9 to 11 mm rope - NFPA 1983 Technical Use when used with a 10 to 11.5 mm rope
