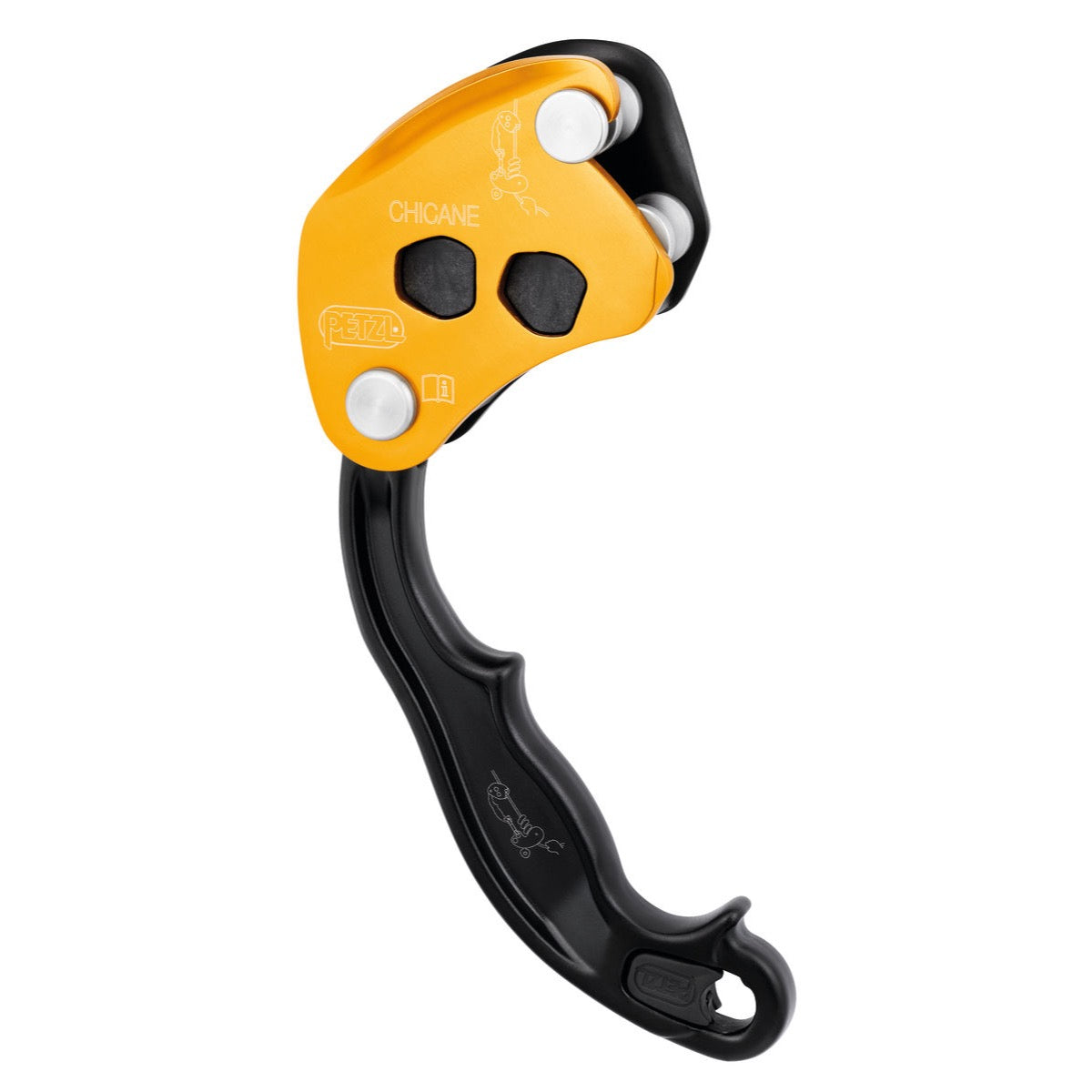

CHICANE

Auxiliary brake for mechanical Prusik on single ropes, for tree care The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.

CHICANE Accessory for ZIGZAG and ZIGZAG PLUS Mechanical Prusiks

The CHICANE accessory is designed to enable the use of ZIGZAG and ZIGZAG PLUS mechanical Prusiks on single ropes, offering enhanced control and functionality for arborists.

Functional Features

• Enhanced Braking: Provides continuous additional braking action with the aid of two friction pins, increasing safety and control during use.
• Connector Compatibility: Compatible with Am'D or OK connectors (not included). The H-shaped cross-section of the connector works seamlessly with the positioning ring of the mechanical Prusik, ensuring a compatible unit that promotes smooth rope glide through the brake during ascents.
• Ergonomic Handling: Features an ergonomic handle that facilitates easy movement, particularly useful while limb walking.

Installation and Safety

• Easy Installation: Features an openable side plate that allows for quick and straightforward installation on the rope.
• Secure Locking Mechanism: Equipped with a triple-action unlocking feature that significantly reduces the risk of accidentally opening the side plate.
• Connection Point: Easily connects to the upper hole of the mechanical Prusik, integrating smoothly with the system.

Durability and Compliance

• Optimized Durability: Constructed with durable materials, including two friction pins that are available as spare parts to extend the lifespan of the accessory.
• Standards Compliance: The CHICANE accessory allows users to work in compliance with the ANSI Z133 standard, meeting safety requirements for arboricultural operations.

Technical Information

• Material(s): aluminum, steel, nylon
• Weight: 255 g
• Min. rope diameter: 11,5 mm
• Max. rope diameter: 13 mm
• Rope compatibility: EN 1891 type A low stretch kernmantel ropes
• Working load limit: 140 kg
• Certification(s): CE, UKCA

Certifications

• CE
• UKCA
